Cloud Integrated
Access Control Solution
Easy Cloud Management

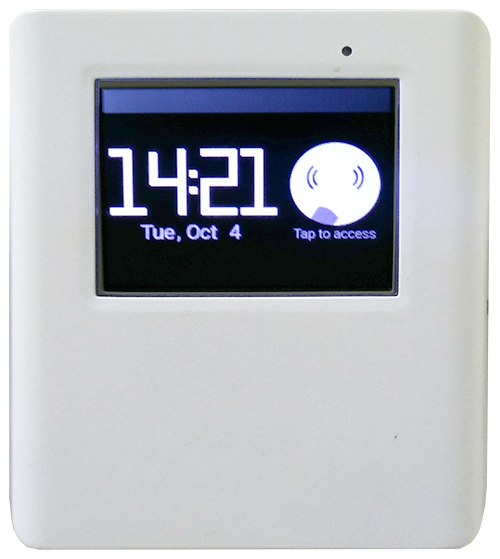

The Pepxim Smart Reader and Time and Attendance System make attendance management a breeze. Employees can easily clock in and out using their own NFC cards, while management gains access to an intuitive yet powerful system that provides real-time visibility and significantly reduces administrative workload.
High Security, Broad Card Compatibility
Our Smart reader is compatible with today’s most secure card platforms including several HID iClass and Prox formats.
Deploy Anywhere, Remote Offices, Even Mobile!
Traditional systems require local servers and controllers. Deploy our Smart Reader across multiple buildings, remote offices, even mobile locations.
Extensible Cloud Platform - Integrate Into Existing Systems
Our TA Cloud allows you to integrate reader data seamlessly into your existing access control or attendance system.
Introduction Video
Applications

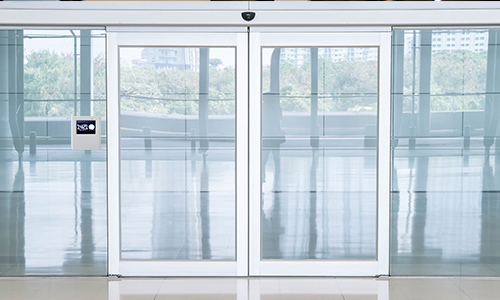

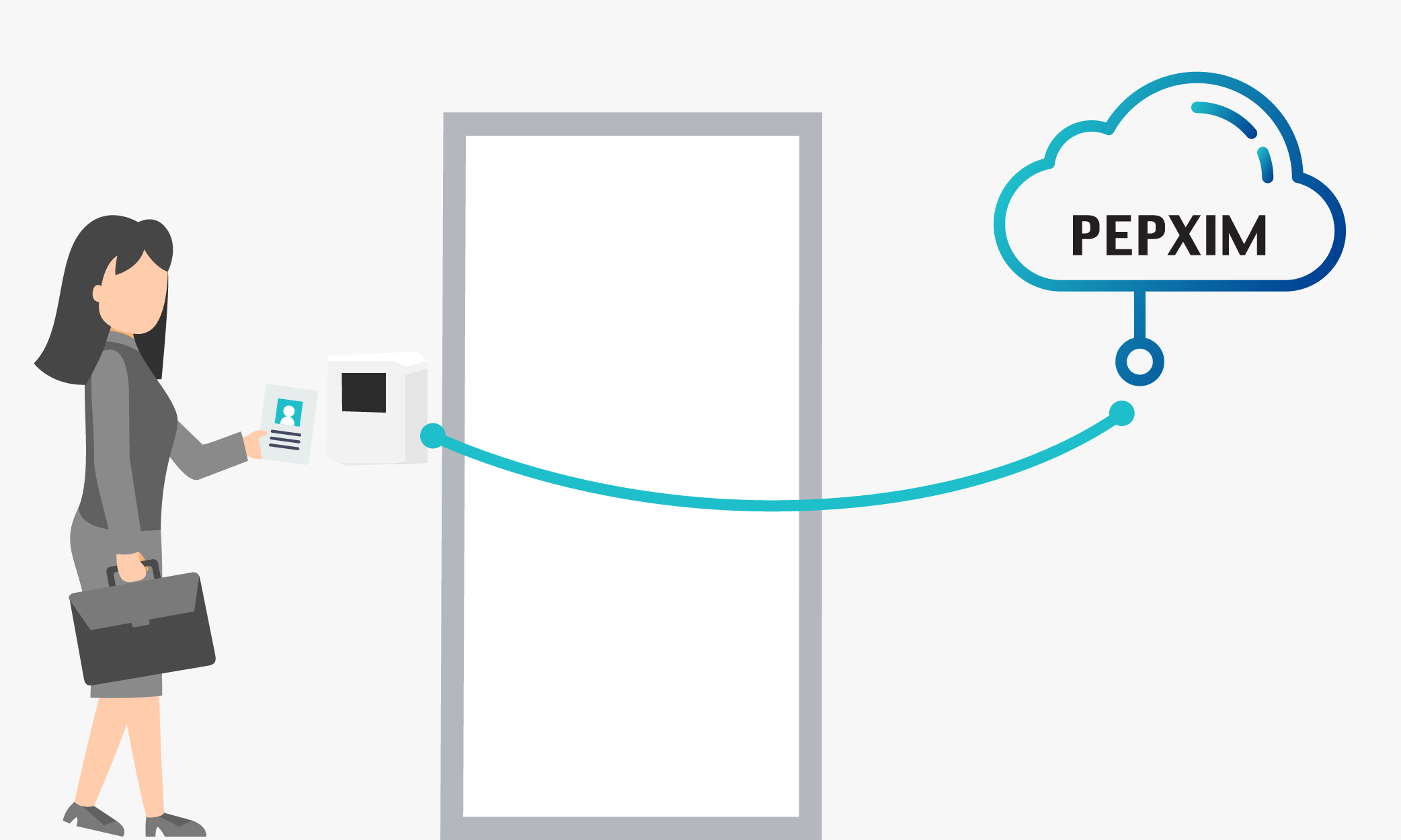

Access Control
The Smart Reader supports NFC-enabled cards, so you can keep track of which employee entered which door, and when.
Establish different user groups and control door access based on these groups.
Vehicle Access & GPS
The Smart Reader can be powered by PoE supplied by MAX cellular routers.
This combination is ideal for vehicular deployments. Receive location information for passengers as they board; useful for big data analytics.

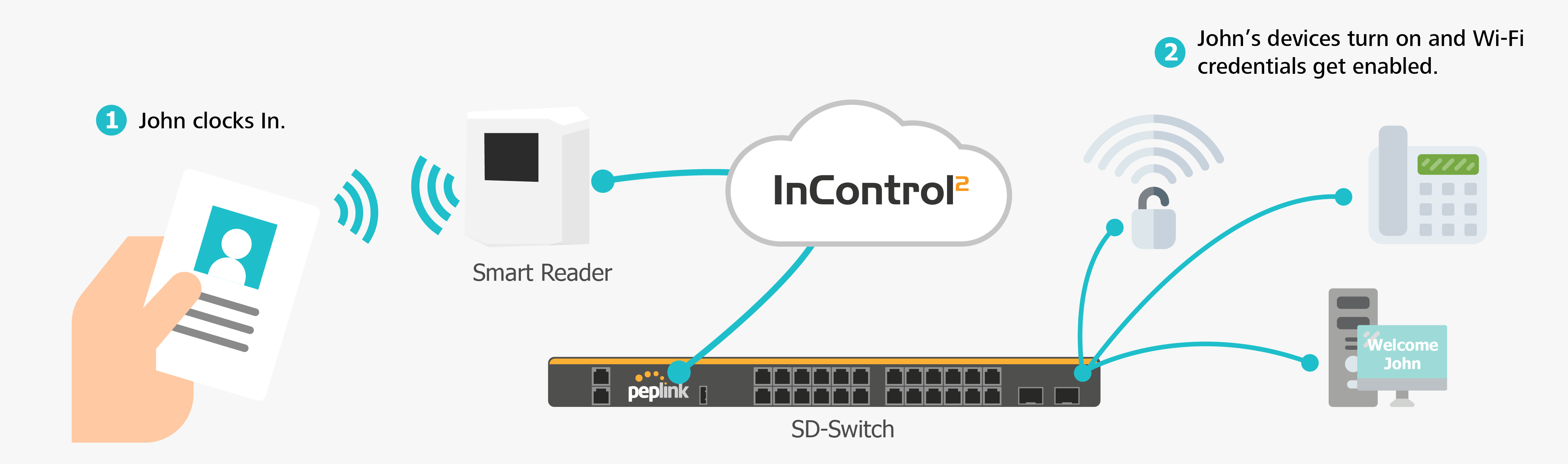

Combine with SD-Switch for an Intelligent Office
- Reduce CO2 Emissions
- Simplify Administration
- Cost Savings
- Improved Security
Cloud-Based Time and Attendance System
All Required Information On One Dashboard
With the TA system, employees can access information about their daily attendance, as well as the status of pending leave requests. With employees able to look up their own attendance information, they no longer need to make inquiries to HR, saving administrative overhead.
If you want learn more about how does our TA system operate, please check out the below videos in full version:
TA System -
Attendance Management
The TA System is accessible from any
browser. Employees are able to see their
attendance record and leave balance. They can also request time record adjustments as needed.

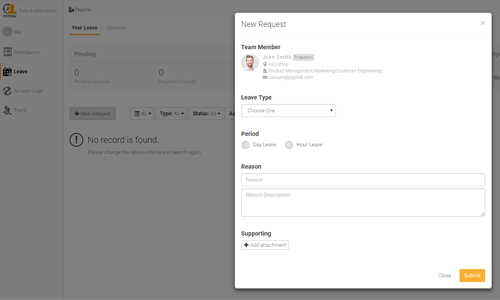

Self Service
Leave Requests
Save administrative costs by having employees perform their own leave requests. Once the request has been submitted, all it takes is one click from the manager to have it take effect.

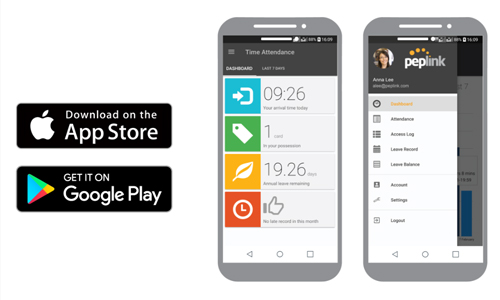

Time and Attendance
Mobile App
Review attendance information on-the-go with our mobile app, available for iOS and Android.
Specifications
iCLASS, iCLASS SE/SR, iCLASS Seos, MIFARE SE, DESFire EV1 SE, MIFARE Classic 1K / 4K, Ultra Light, Ultra Light C, Plus (Security Lvl 1) , MIFARE DESFire 0.6, MIFARE DESFire EV1 (MAC / DES / 3DES / 3K3DES / AES), CEPAS (CAN), FeliCa (Idm), PIV, ISO14443B (CSN) T=CL, ISO 14443 A with up to 848 kbps transmission rate (depending on card), ISO 15693 with up to 26 kbps transmission rate (depending on card), iCLASS Seos
Cards and Protocols
High Frequency
Low Frequency HID Prox, HID Indala Prox, EM Prox, AWiD Prox

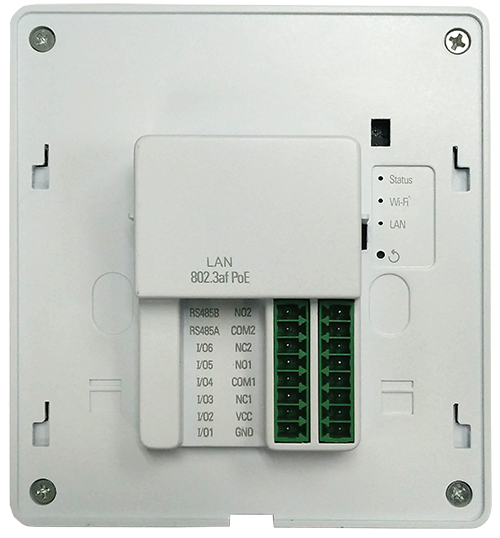

Interfaces
Network 1x 10/100M Ethernet Port,
802.11 a/b/g/n, 2.4/5GHz Wi-Fi
(as WAN)
I/O 6x I/O (Analogue or Digital, Software Selectable )
RS-485
2 sets Dry Contact (NC/NO/Common)
Hardware
Enclosure Compact Plastic IP55 Enclosure
Weight 0.45lbs (205g)
Power Input 802.3af PoE or Terminal Block (12-24V)
Consumption 13W (max.)
Temperature Range -40°C to 65°C | -40°F to 149°F
Humidity 15% – 95% (non-condensing)
Product Code Name Description
RDR-IW-LCD Smart Reader Smart Reader with color LCD display.
TA-VA-20 TA Virtual Appliance TA Appliance, supports 20 Smart Readers.
TA-VA-LC-10 Extra 10-Reader license For TA Virtual Appliance Enables the TA Appliance to support an additional 10 Smart Readers.
TA-10 TA Cloud Appliance Annual Fee TA Cloud Appliance, annual fee, supports 10 Smart Readers.
TA-LC-1 Extra Reader Annual Fee For TA Cloud Appliance Enables the TA Cloud Appliance to support one additional Smart Reader.
