Cloud-Based GPS Tracker
Introducing the Pepxim GPS Tracker! This battery-powered device features two redundant SIM slots, allowing for unbreakable connectivity, so you can see all your GPS information instantaneously and in real time.

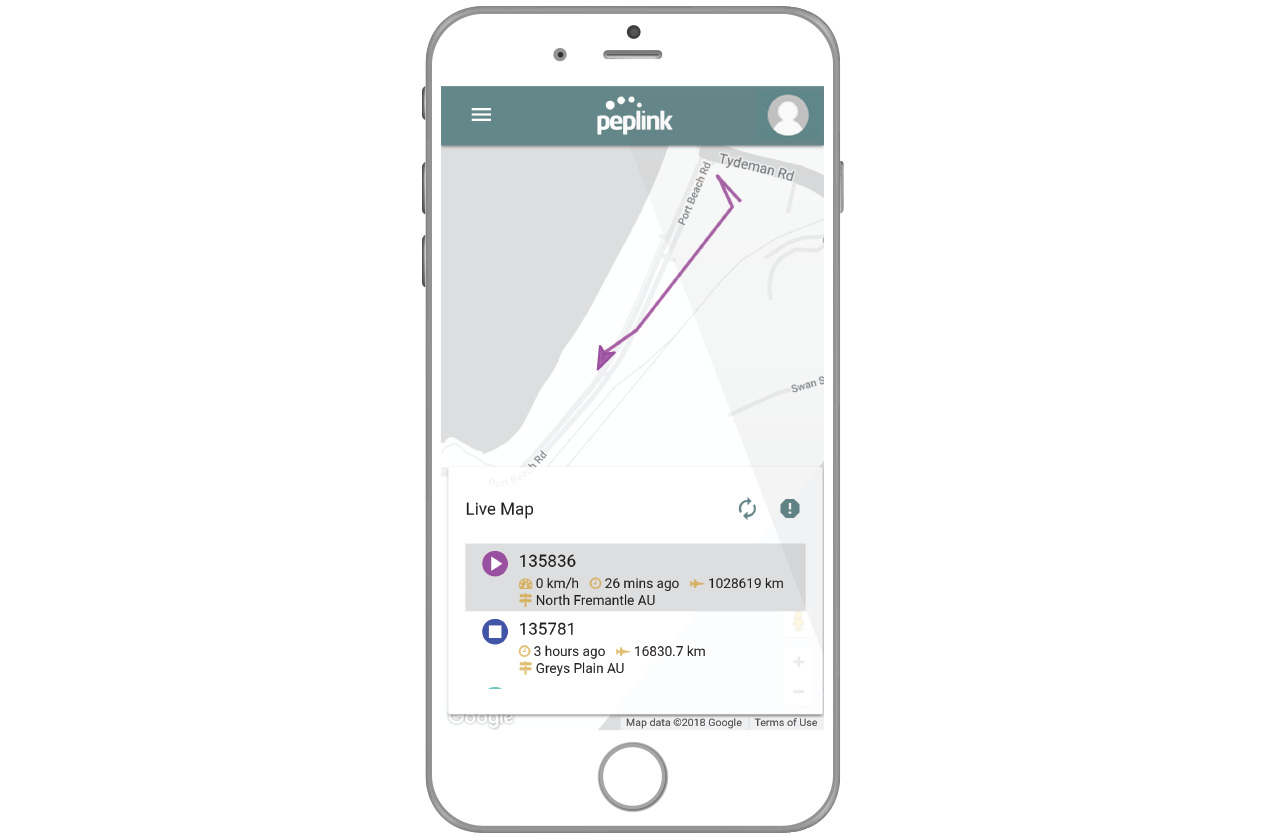

Unlike with some other GPS devices, there is no worry about the Pepxim GPS Tracker wearing down your vehicle’s battery. The device is fully self powered, via four C-size batteries, or a rechargeable lithium battery. With the rechargeable lithium option, you’ll enjoy up to six months of battery life, plus you’ll be able to see how much battery power your device has remaining in the mobile app or browser.
Pepxim’s cloud-based GPS software goes beyond simply pinpointing the location of your fleet’s vehicles. You’ll be able to take full advantage of its geofencing features, as well as program when you want the device to be in a power-saving mode to extend battery life.
- Manage Assets and Track All Fleet via One Pane of Glass
-
New Generation Cloud-Based Geo-Fencing Management
- Flexible and Extensible Battery Management System
2 major modes

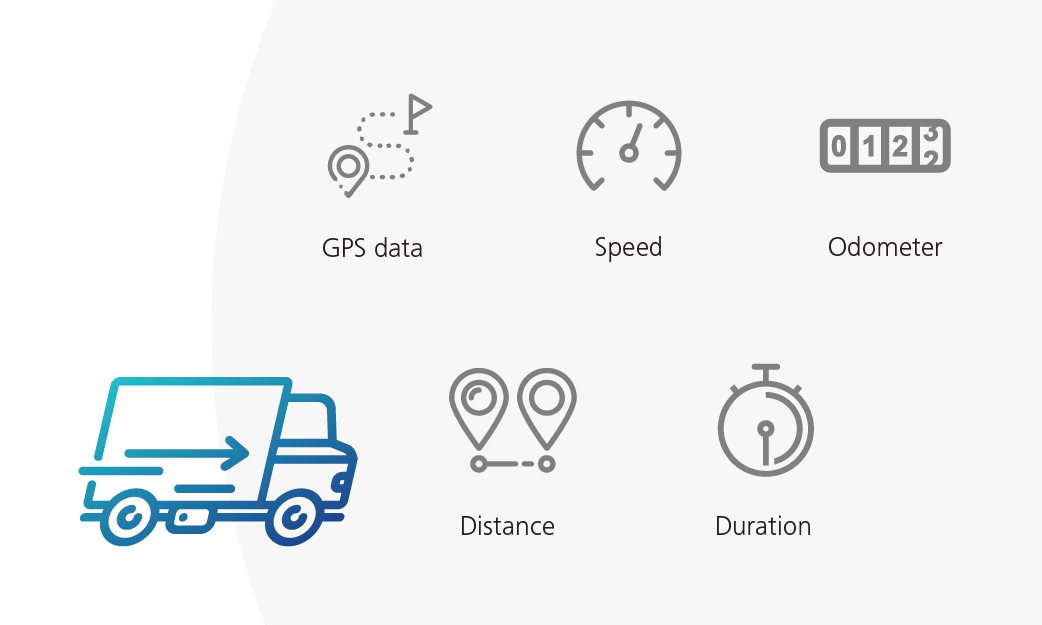

On-Trip mode

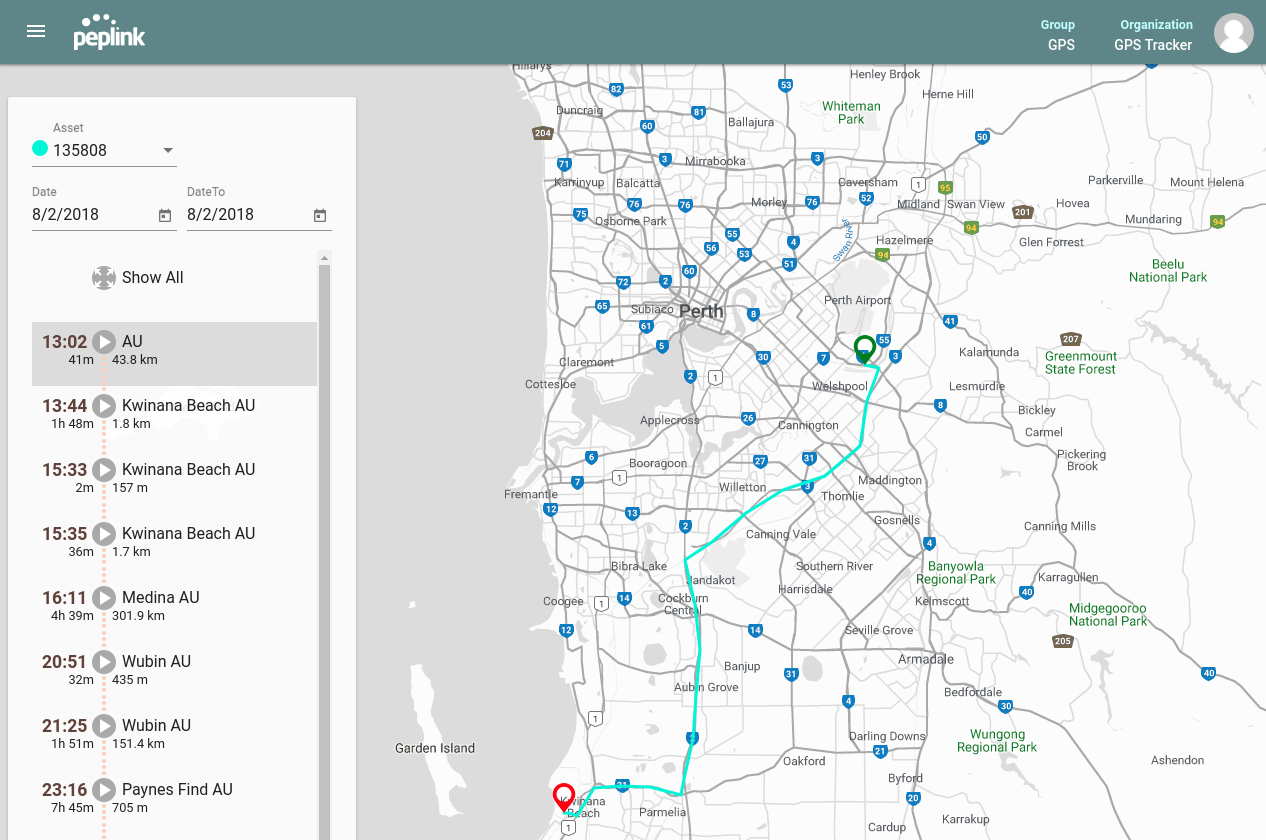

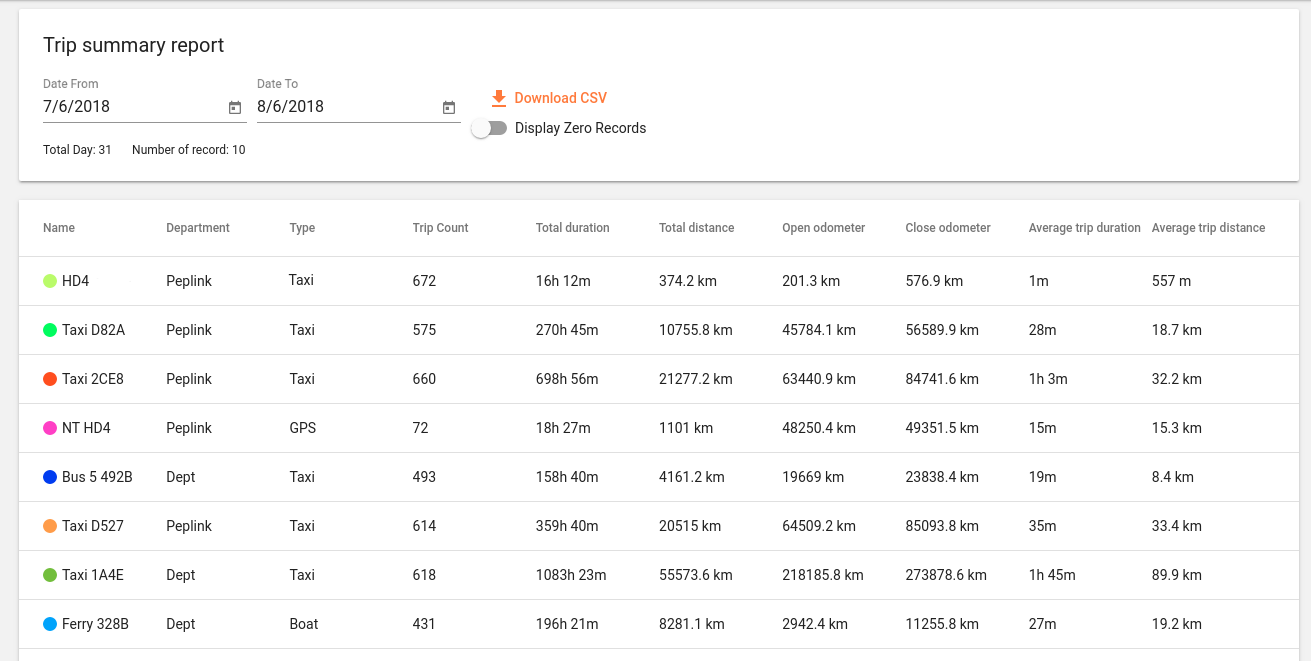

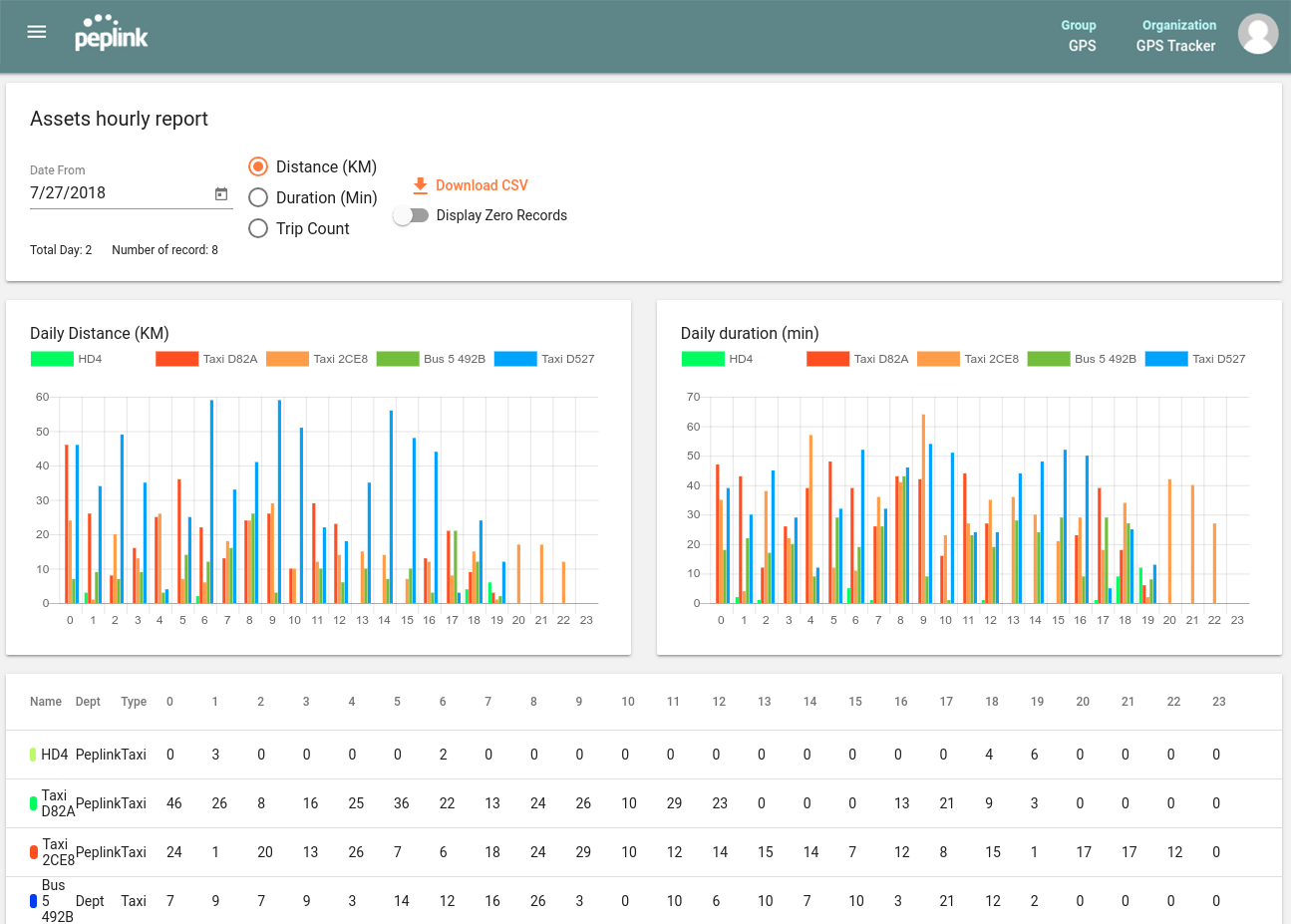

When the GPS Tracker is in On-Trip Mode, it will continuously upload GPS data to the cloud in real time, where our cloud-based reporting dashboard can translate the information and give it to you in useful, easy to understand ways such as reporting speed, distance traveled, trip duration, and more.

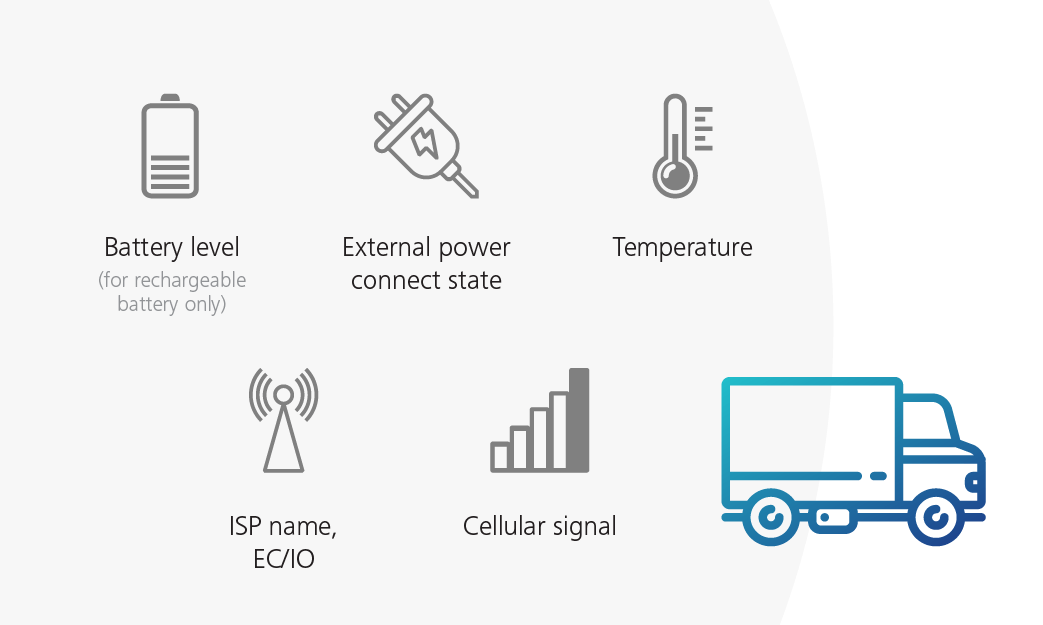

Power Saving Mode
To conserve battery life, the device (when not in active On-Trip Mode) will cache its GPS data offline for retrieval later, rather than constantly uploading straight to the cloud in real time.
Applications
Truck Rental Companies
Emergency / public service vehicles
Cloud-based GPS software

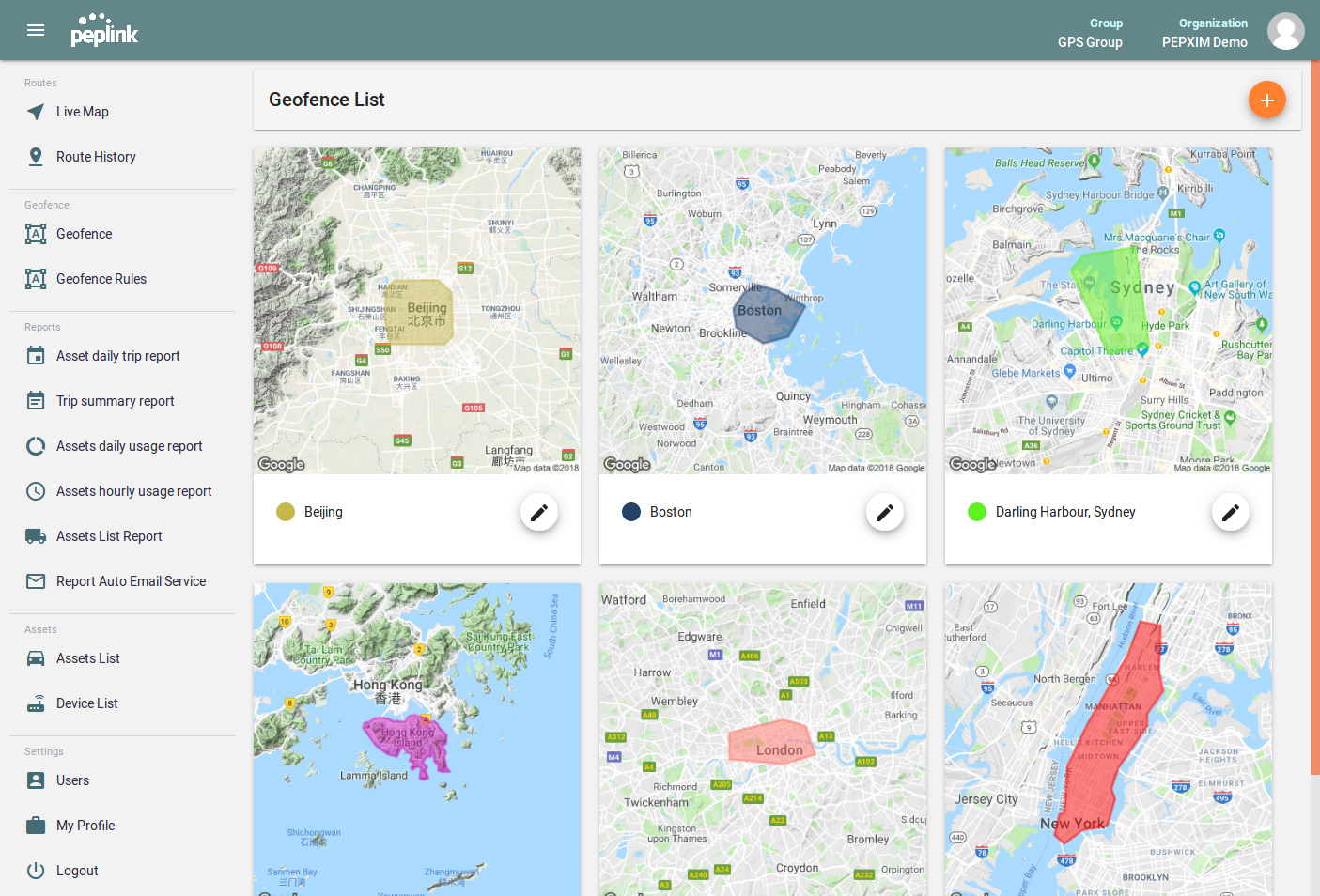

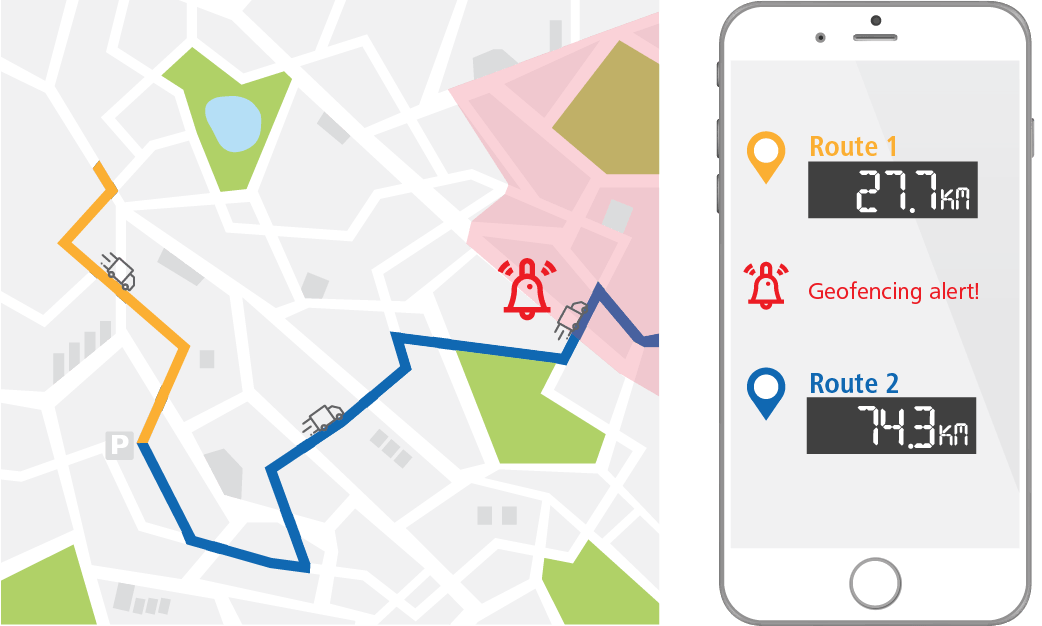

Easy to Manage Geo-Fencing

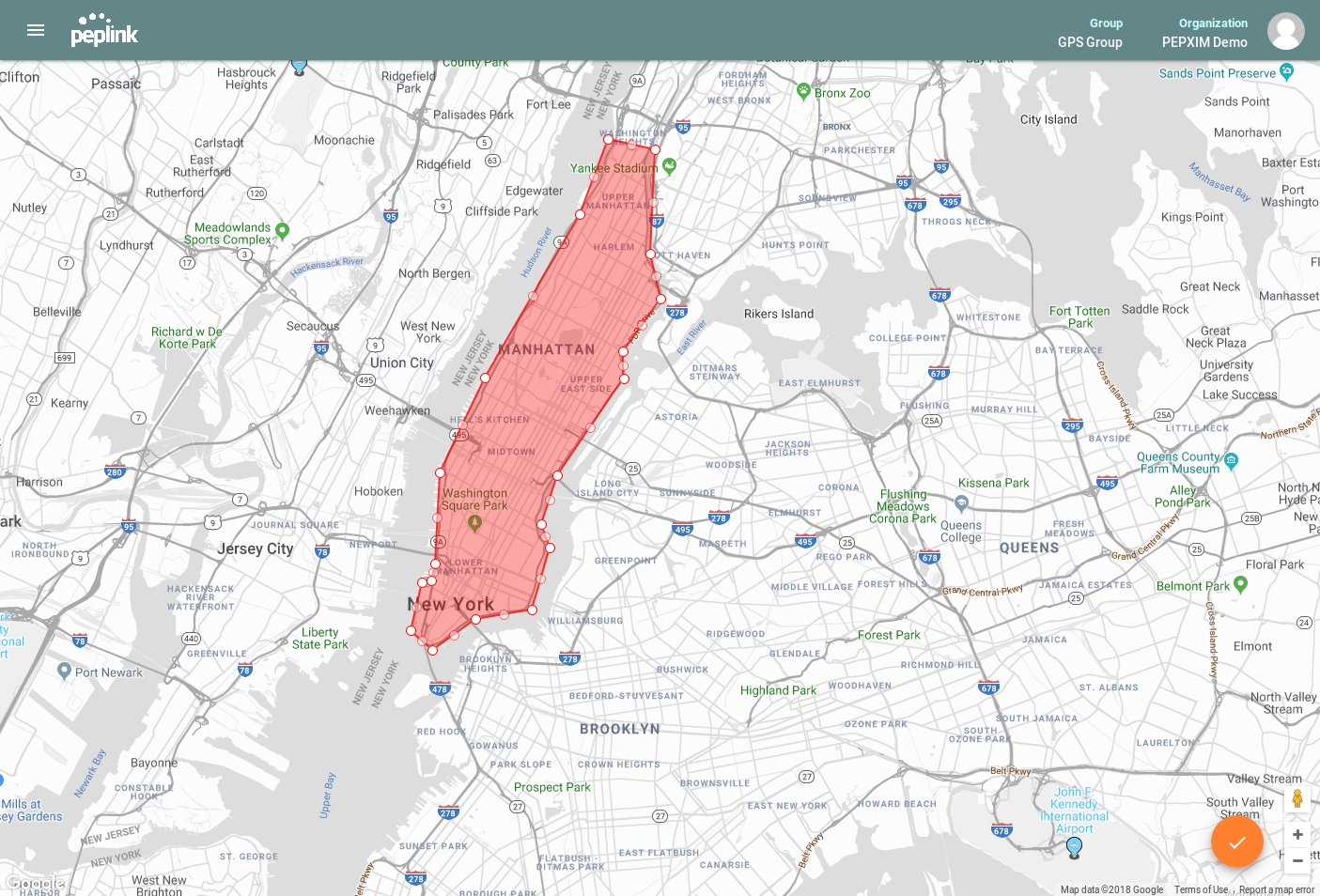

Our geofencing feature allows you to designate specific, custom areas on the map, and choose an action for the device to take when it moves into, or out of, any of these areas. For instance, a truck rental company that wishes to charge a certain rate for their vehicles being used in one area, and a different rate in another, will be able to not only see which area the vehicle is in, but also configure notifications for when the truck crosses from one area to another.
Cloud-Based Device Management
GPS tracking information can be especially valuable for emergency and/or public service vehicles. With Pepxim’s cloud-based GPS software, the operators in the vehicle no longer need to report their position verbally, leaving them free to drive safely and/or (in the case of firefighters, ambulances, etc.) focus on their job at hand.
Specifications
Connectivity
Modem 3G Global modem
SIM Card Size Micro SIM (12 x 15mm)
Redundant SIM Slots 2x redundant SIM Slots
GSM Antenna Internal cellular antenna
Hardware Features
Power Source Rechargeable lithium battery / C-size battery x 4
Power Consumption Sleep current 200 μA (depending on set up)
Battery capacity 6900 mAh

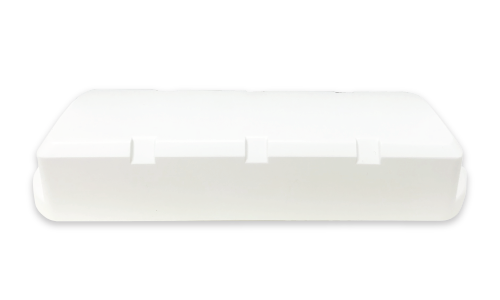

Enclosure Outdoor IP67 All-Weather

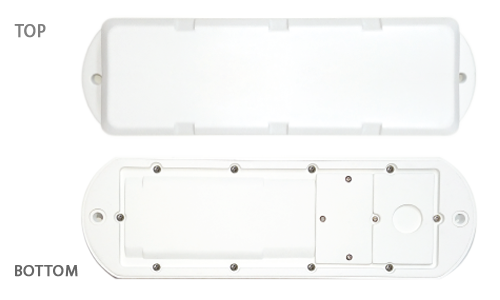

Mounting Screw holes and strap slots
Antenna Embedded GPS and cellular antenna
Dimensions 8.66 x 2.76 x .1.61 inches / 220 x 70 x 41mm
Weight 255 grams (exclude batteries)
Operating temperature -40° – 149°F / -40° – 65°C
Humidity 10% – 80% RH non-condensing
GPS Tracking
GPS Module High sensitivity assisted GPS receiver, 72 channels
GPS/GLONASS Concurrent GPS/GLONASS
Product Code Product Name Description
TKR-3G-5V-6K GPS Tracker GPS tracker with 3G global modem, 2x redundant SIM slots,
6900 mAh battery / C-size battery
TKR-LC-01 GPS Tracker Cloud Service license for GPS Tracker, annual service subscription for
GPS Tracker IoT cloud service
