PowerFusionTM
PowerFusion technology is about the bonding and unification of multiple power inputs, thus plays a vital part as Power controllers for Network devices and Telecommunications equipment such as routers, gateway, Ethernet switches and supports high-speed carrier-class Ethernet service. It benefits everyday lives by offering remote presence management which enables Internet live streaming and also provides a stable and secure power supply to equipment by stabilizing the voltage.
The software and hardware-implemented PowerFusion further facilitates redundant power supplies and distribution boxes for electrical power which makes features like sensors, alarms and Power over Ethernet appliances (mainly network routers and switch) functionable. Aggregated power supply equipment like Electrical adapters supply power to a communication device safely. Uninterrupted and seamless connectivity makes Fiber to-the-home Broadband work faster. However, the format of Powerfusion can not sustain simultaneously with a rechargeable battery, cables, charging cords, battery powered jump-start systems, and Semiconductor devices.
Our Software-Defined Power Management Unit (SD-PMU) is powered by PowerFusion.
PowerFusionTM technology in SD-PMU
The vast majority of automobiles, trucks, boats, and yachts typically make use of a 12- or 24-volt power system. Even though the battery is designated to operate at a specific volt, the actual voltage is fluctuating depending on its lifespan, loading, and state-of-charge.
Pepxim’s PowerFusionTM technology allows vehicle and vessel power systems to achieve uninterruptible, reliable, and stable electrical power supplies. Using our voltage regulation circuit, you can aggregate multiple DC power sources with a wide voltage range from 12 to 56 volts, and transfer to a constant voltage power supply.
Our PowerFusionTM system maintains the safety of your portable power system by monitoring the voltage, converting the fluctuating voltage into an optimum value, and protecting your devices from overvoltage. Depending on model, Pepxim’s Power Management Units can output designated voltage values according to usages. For instance, sensitive onboard telemetry, surveillance cameras, and Power over Ethernet appliances.

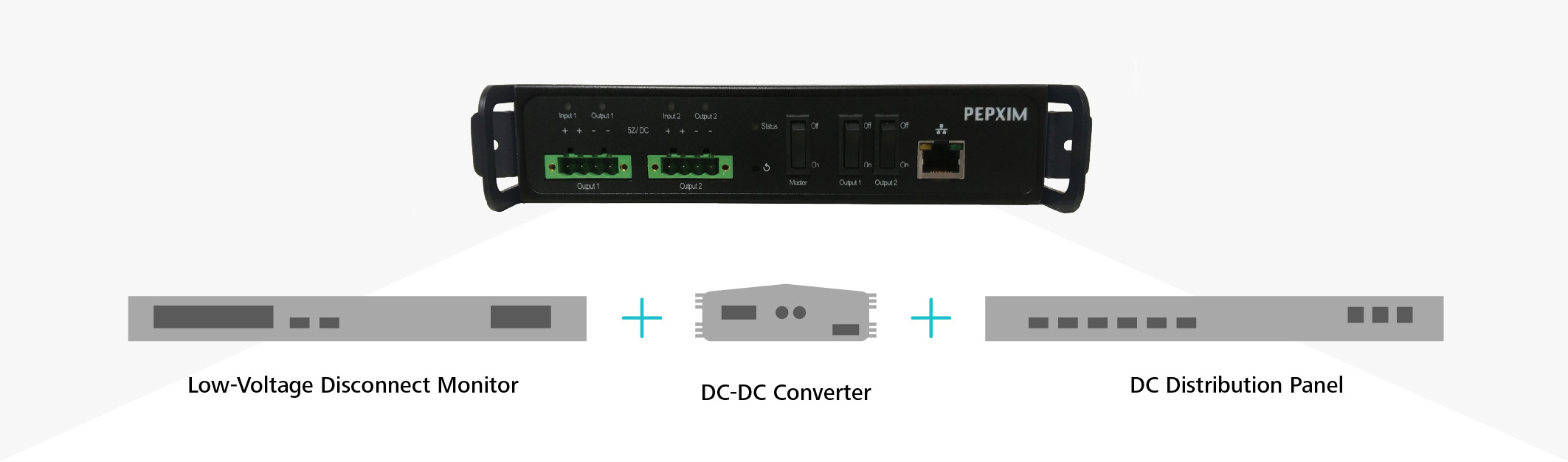

3 Devices in 1
The SD-PMU can reduce setup costs, operational complexity, and maintenance expenses by performing the functions of three devices: a low-voltage disconnect monitor, a DC-DC converter, and a DC distribution panel.
Rather than installing three enclosures and connecting them through cables, installation now simply involves connecting the batteries and an Ethernet connection to the SD-PMU.
This results in significantly reduced network complexity, smaller footprint, and greater network resilience.
PowerFusion enabled product

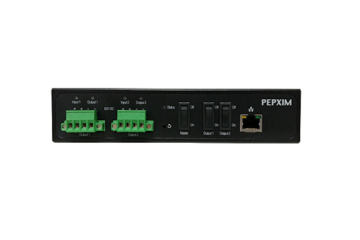

Software-Defined Power Management Unit
- PowerFusion enabled
- 2x terminal block inputs
- 4x terminal block outputs
- DC-DC Power converter
- 52V Output, 200W/port max
- Allows visibility of power supply in IC2
Product Code: SD-PMU
MSRP: USD 699-
Specifications
Product Code SD-PMU

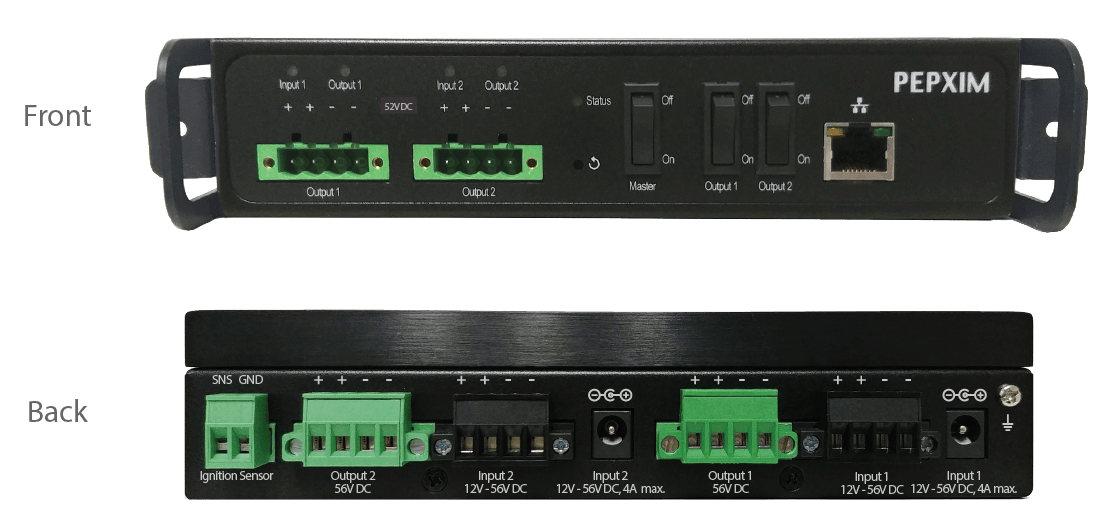

Power Input 2x Terminal Blocks, 2x DC Jacks
12-56V DC
Power Output 4x Terminal Blocks: 52V DC (2x Shared Channels: Front/Back)
MAX Wattage Output 200W Per Output Channel (Front/Back)
Ignition Management 1x Ignition Sense PIN
Ethernet Port 1x Ethernet Port for IoT Cloud Access
Enclosure Indoor Metal
Dimensions 7.4 x 8.1 x 1.6 inches
187 x 205 x 41 mm
Weight 4.4 pounds
2000 grams
Operating Temperature -4° – 131°F
-20° – 55°C
Humidity 15% – 95% (non-condensing)
Certifications FCC, CE, RoHS, Rolling Stock
Warranty 1-Year Limited Warranty
Product Code Product Name Description
SD-PMU Software-Defined Power Management Unit Software-Defined Power Management Unit, 2x terminal block inputs, 4x terminal block outputs. Cloud Functionality.
ACW-741 Mounting rack, mounting ears and screws for the SD-PMU
